Product features:
1. Heat dissipation mode of water cooling, realizing indoor low heat emission
2. Efficient plate heat exchanger, nationally-patented plate heat exchanger anti-freeze technology
3. Multiple temperature control precisions to satisfy different demands: ±0.1℃, ±1.0℃, ±2.5℃
4. Pressure indication for the water flow system and refrigeration system
5. Stainless steel water pump and water tank; the water circulation system does not contain metals such as copper, aluminum, and iron, so it will not rust at all
6. Filtration of cooling water, and fine filtration of chilled water, with the filtering accuracy at the user's option
7. Multiple alarm functions such as phase sequence alarm, flow alarm, liquid level alarm, temperature alarm, pressure alarm
8. Water chiller alarm signal output
9. Heating function, rapid temperature rise at low temperature environment
10. Record of operating time, start/stop times of main parts
11. High-resolution LCD display
12. Cooling tower fan, chilled water pump, and cooling water pump output control functions
13. Externally controlled start, chilled water flow, and cooling water flow input control functions
14. Casters available to facilitate movement of the chiller
15. Compact size, easy operation, high efficiency and energy saving, stable performance, quality guarantee
Function introduction:

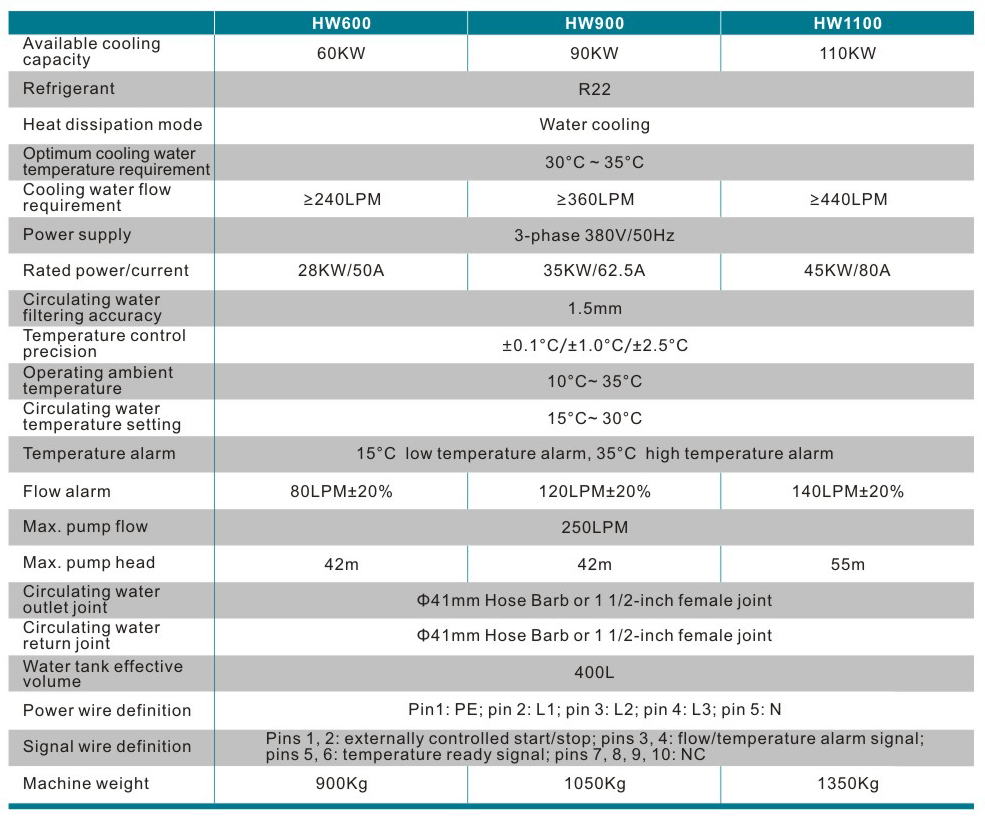

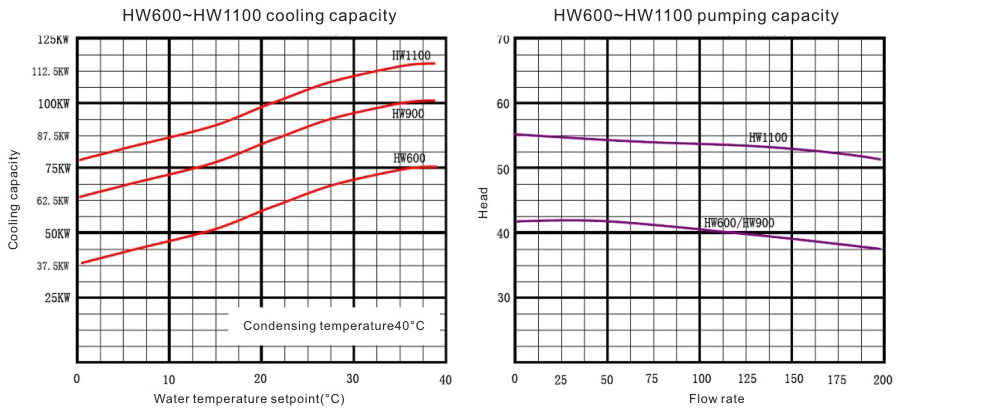

The HW600~HW1100 Series Water-cooled Water Chiller provides thermostatic (±0.1℃/±1.0℃/±2.5℃) circulating cooling water, with a cooling capacity of 60KW~110KW, satisfying long-term steady cooling requirement of the heat generating equipment with a heating value ≤110KW. The chiller adopts water cooling condensing mode to realize heat dissipation, and the heat produced by the heat generating equipment will be discharged to the external environment through the cooling water, whereby it will not increase indoor heat and the noise is low.
Scope of application
High-power laser equipment/Reaction kettle/Foaming machine/Electroplating production line/Centralized cooling/water supply system
