Air Cooled Chillers HC-6K~HC-20K Series
基本信息

The HC-6K~HC-20K double-temperature series water chiller provides three options of temperature control precision to meet different demands. The water chiller has a refrigeration capacity of 14KW~57.5KW, satisfying cooling requirement of the heat generating equipment with a heating value ≤57.5KW during long-term operation. The water chiller can be air-cooled or water-cooled, air cooling mode does not need external cooling water, so it is more convenient, water cooling mode will discharge the heat to the external environment and will not increase heat to the indoor environment, each mode has its advantages and disadvantages.

Air Cooled Chillers HC-6K~HC-20K Series

Scope of Application: Fiber laser machine 500W/ 1000W/ 2000W/ 4000W/ 6000W/ CNC machine/ High-speed spindle etc.

FAQ:

1. How long is the warranty?

A: within one year from the date of the factory, if the parts are faulty or damaged (due to quality problems, except wearing parts), our company will provide these parts free of charge.

2. How long is your lead time?

A: We have some in stock. But if it takes about 7-10 working days to produce a set of equipment for a normal machine, it takes about 20-25 working days to produce one or more containers. The customized products will take about 30 working days. You need to negotiate the exact delivery time with our sales manager, which depends on your product quantity and product type.

3. Are you a factory or a trading company?

A: We are a factory specializing in water chillers. We offer a wide range of industrial chillers to meet any equipment’s cooling need.

Air Cooled Chillers HC-6K~HC-20K Series

Items

HC-6K/4K-23A

HC-8K/6K-23A

HC-12K10K/8K-23A

HC-15K/12K10K-23A

HC-20K/15K-23A

HC-20K/15K-23A

Cooling capacity

14KW

18KW

28.5KW

36.5KW

45.5KW

57.5KW

Refrigerant

R407c

Power supply

380V/ 3PH/ 50Hz

380V/ 3PH/ 50Hz

Rated power/ Current (cooling)

7.5KW/ 13.4A

8.9KW/ 15.8A

13.8KW/ 25.2A

15.9KW/ 28.9A

20.0KW/ 36.3A

24.1KW/ 43.0A

Rated power/ Current (heating)

6.8KW/ 12.2A

8.3KW/ 14.8A

11.0KW/ 18.7A

11.0KW/ 18.7A

11.0W/ 18.7A

11.0W/ 18.7A

Filter fineness

50μm

1.5mm

Temperature accuracy

±1.0℃

Temperature range

10℃~40℃

Temperature alarm

5℃ low temperature alarm, 40℃ high temperature alarm

Flow alarm (LPM)

10/ 0.7

10/ 0.7

20/ 1.5

40/ 1.5

60/ 1.5

60/ 1.5

Max. pump flow (LPM)

117/ 58

117/ 58

233/ 58

233/ 58

233/ 58

233/ 58

Max. pump lift

58/ 56

58/ 56

54/ 56

54/ 56

64/ 56

64/ 56

Connector main circuit (low temp.)

φ25mm barb connector

φ32mm barb connector

G 1-1/2”

Connector sub circuit (high temp.)

φ13mm barb connector

φ13mm barb connector

G 3/4”

Tank volume

65L/ 6L

100L/ 20L

90L/ 20L

100L/ 20L

160L/ 40L

200L/ 40L

Power pin definition

L1\L2\L3: live wire, N: neutral wire, PE: earth wire.

Control pin definition

1.2: run/ stop control in, 3.4: system error state out

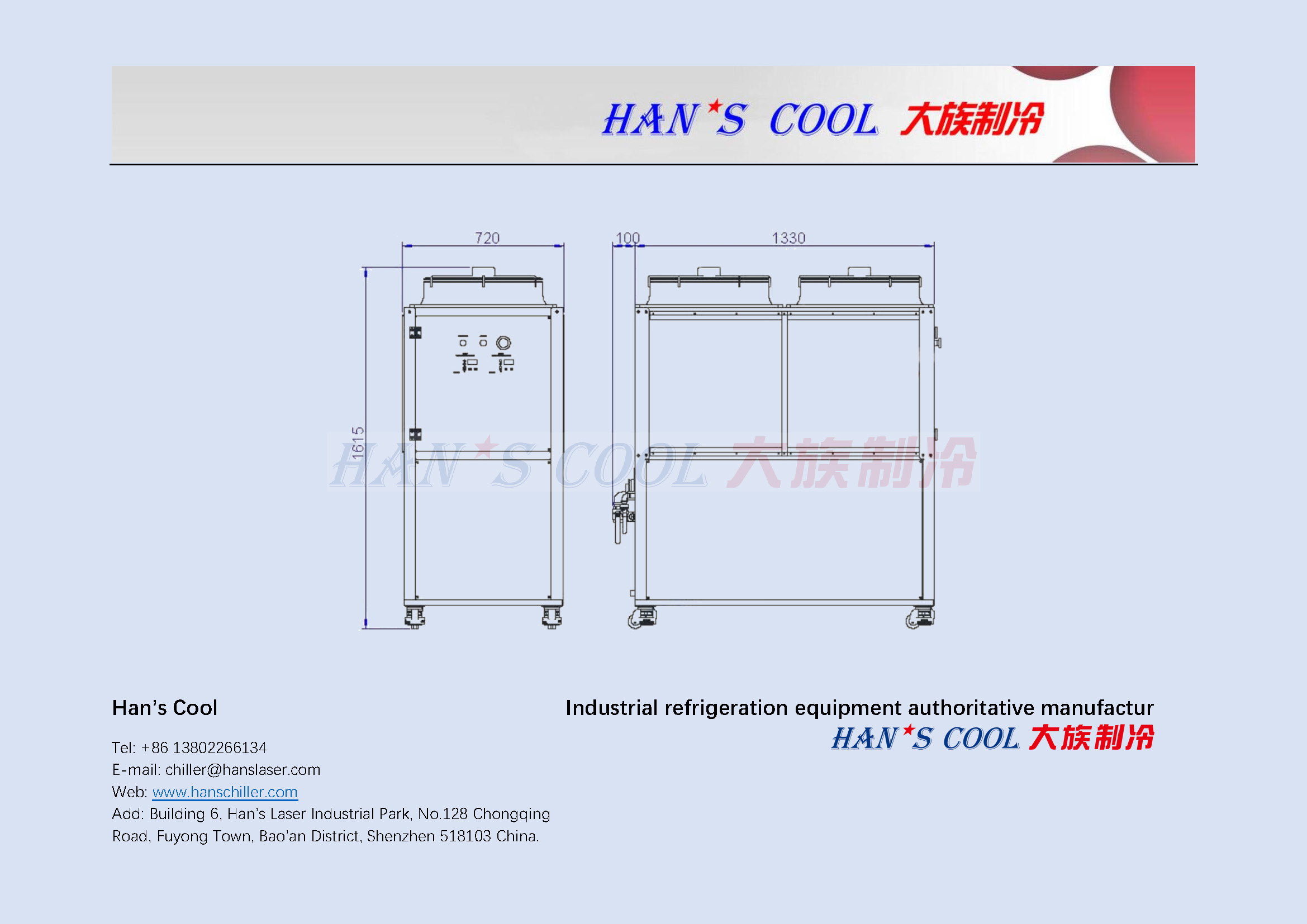

Dimension LxWxH (mm)

935x755x1465

826x1035x1756

720x1035x1615

775x1605x1705

900x1850x1885

1050x2000x1965

Machine weight

205KG

350KG

420KG

480KG

650KG

720KG
